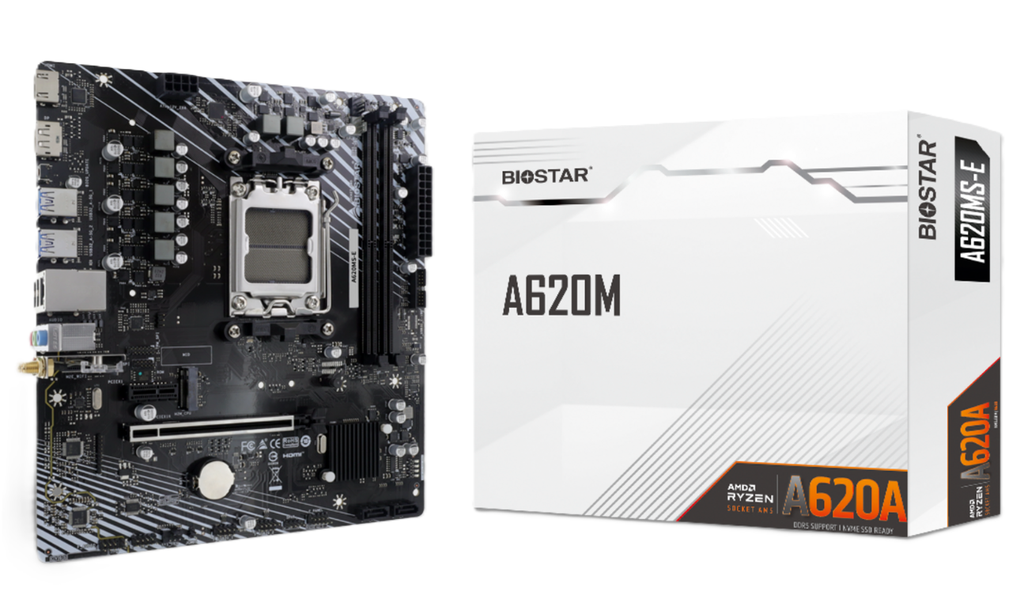

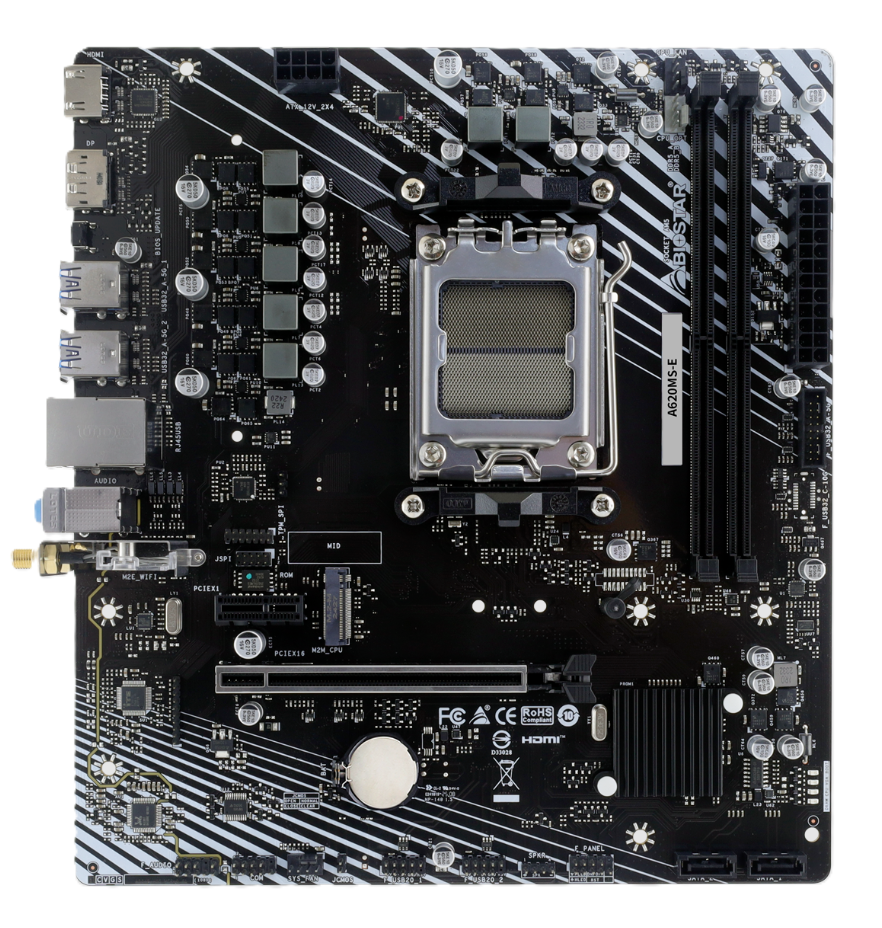

Tarjeta Madre Biostar A620MS-E 4K HDMI

Chipset AMD A620A
CPU SUPPORT Socket AM5 support AMD Ryzen™ 9000 / 8000 / 7000 series Processors
Support for future AMD Ryzen processors with BIOS update
* Please refer to www.biostar.com.tw for CPU support list.
MEMORY AMD Ryzen 9000 / 8000 / 7000 Series Processors:
Supports Dual Channel DDR5 - 8000+(OC) MT/s, Non-ECC, Un-buffered Memory
2 x DDR5 DIMM Memory Slot, Max. Supports up to 128 GB Memory
Support Intel® Extreme Memory Profile (XMP) memory modules and AMD EXTended Profiles for Overclocking (EXPO) memory modules
* Please refer to www.biostar.com.tw for Memory support list.
INTEGRATED VIDEO By CPU model
Supports DX12
Supports HDCP
STORAGE Total support 1 x M.2 Socket and 2 x SATA (6Gb/s) ports
AMD Ryzen 9000 / 8000 / 7000 Series Processors
1 x M.2 (Key M2) Socket (M2M_CPU):
Support M.2 Type 2242/2260/2280 SSD module
Support PCIe 4.0 x 4 (64Gb/s) - NVMe SSD
2 x SATA III Connector (6Gb/s):
Supports AHCI & RAID 0, 1, 10
* Specifications vary by CPU types
LAN Realtek RTL8111H
10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
AUDIO CODEC Realtek ALC897
7.1 Channels, High Definition Audio, Hi-Fi (Front)
USB 6 x USB 3.2 (Gen1) port
(4 on rear I/O and 2 via internal header)
6 x USB 2.0 port
(2 on rear I/O and 4 via internal header)
EXPANSION SLOT AMD Ryzen 9000 / 8000 / 7000 Series Processors
1 x PCIe 4.0 x16 Slot (x16 mode)
AMD A620A Chipset
1 x PCIe 3.0 x1 Slot (x1 mode)
* Specifications vary by CPU types
REAR I/O 2 x WiFi Antenna Ports
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
1 x Gigabit LAN port
3 x Audio Jack
1 x SMART BIOS UPDATE Button
1 x SMART BIOS USB Port
1 x HDMI® Port (HDMI®2.1)
1 x DP Port (DP1.2)
INTERNAL I/O 2 x SATA III Connector (6Gb/s)
1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module
1 x USB 3.2 (Gen1) Header
(each header supports 2 USB 3.2 (Gen1) ports)
2 x USB 2.0 Header
(each header supports 2 USB 2.0 ports)
1 x 8-Pin Power Connector
1 x 24-Pin Power Connector
1 x CPU Fan Connector
1 x CPU water cooling connector (CPU_OPT)
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
* M.2 (E Key) Wi-Fi card is not provided
RAID Supports RAID 0, 1, 10 for SATA storage devices
DIMENSION Micro ATX Form Factor Dimension: 22.1cm x 24.4cm ( W x L )
OS SUPPORT Supports Windows 10(64bit) / Windows 11(64bit)
※Biostar reserves the right to add or remove support for any OS with or without notice.
ACCESSORIES 2 x SATA Cable
1 x I/O Shield
1 x WiFi antenna accessories(Wi-Fi accessories are optional, contact your local dealer to purchase.)
1 x M.2 Anchor
